Rotor - Makita Rotor + reťazové koleso pre pílu MLT100

Makita wirnik + zębatka - nowy oryginalny

Zastosowanie: do piły stołowej MLT100

Numer katalogowy wirnika: JM27000309

Numer katalogowy zębatki : JM27000322

Pozycja na schemacie wirnika: 320A_

Pozycja na schemacie zębatki: 322

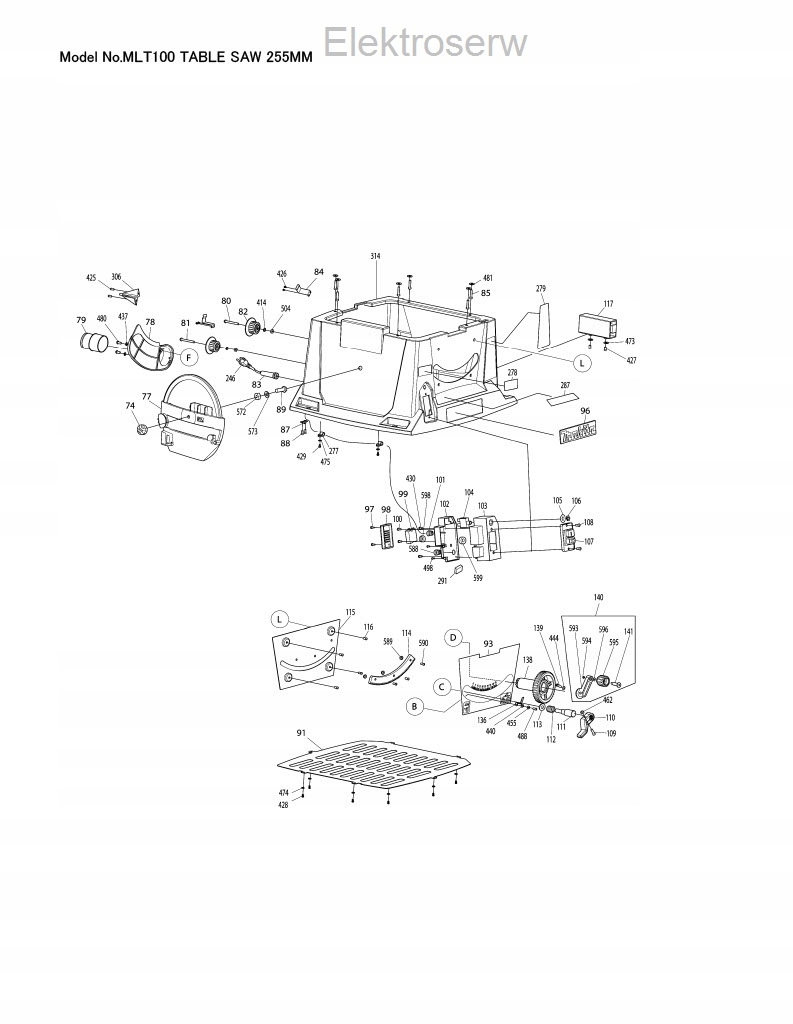

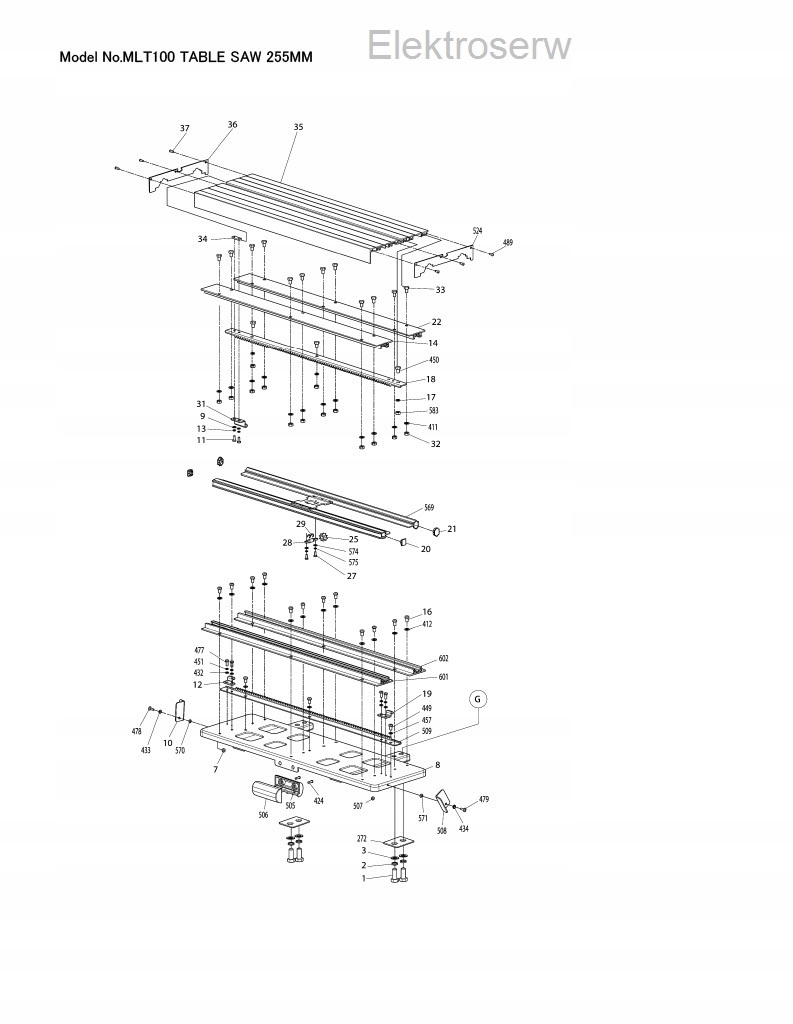

Spis części

1 JM27000001 HEX BOLT M10X35 4

2 JM27000002 SPRING WASHER 10 4

3 JM27000003 FLAT WASHER 10 4

4 JM27000004 TAPPING SCREW ST3.9X12 2

5 JM27000005 GRIP (OUTSIDE) 1

6 JM27000006 GRIP (INSIDE) 1

7 JM27000007 HEX LOCK NUT M4 1

8 JM27000008 SLIDE TABLE BASE 1

9 JM27000009 FLAT WASHER 4 2

10 JM27000010 SLIDE TABLE STOPPER 1

11 JM27000011 PAN HEAD SCREW M4X12 2

12 JM27000012 SLIDE LIMITER LOWER REAR 1

13 JM27000013 SPRING WASHER 4 2

14 JM27000014 SQUARE SLIDER RAIL OUTSIDE 1

16 JM27000016 PAN HEAD SCREW M6X10 12

17 JM27000024 FLAT WASHER 6 3

18 JM27000018 RACK FOR SLIDE TABLE 1

19 JM27000019 SLIDE LIMITER LOWER FRONT 1

20 JM27000020 SQUARE SLIDER RAIL END CAP 2

21 JM27000021 V-SLIDER RAIL END CAP 2

22 JM27000022 V-SLIDER RAIL OUTSIDE 1

24 JM27000024 FLAT WASHER 6 2

25 JM27000025 PINION GEAR FOR SLIDE TABLE 1

27 JM27000027 PAN HEAD SCREW M4X10 2

28 JM27000028 PINION GEAR AXLE 1

29 JM27000029 E SHAPE RETAINING RING 6 2

31 JM27000031 SLIDE LIMITER LOWER REAR 1

32 JM27000032 HEX NUT M6 12

33 JM27000033 HEX BOLT M6X10 12

34 JM27000034 PLATE NUT M4 1

35 JM27000035 SLIDING TABLE 1

36 JM27000036 SLIDING TABLE COVER 1

37 JM27000037 TAPPING SCREW ST3.9X8 3

38 JM27000038 PAN HEAD SCREW M6X16 2

39 JM27000039 FIX BRACKET FOR BLADE CASE 1

40 JM00000002 MAIN TABLE A 1

41 JM27000167 PAN HEAD SCREW M5X12 2

42 JM27000043 KNOB BOLT M6X20 2

43 JM27000044 SLIDE SHAFT 330 2

44 JM27000046 REAR EXTENSION TABLE ASSEMBLY 1

45 JM27000047 WASHER 5 (L) 2

46 JM27000048 SPRING WASHER 5 2

47 JM27000167 PAN HEAD SCREW M5X12 2

49 JM27000051 HEX LOCK NUT M6 1

50 JM27000055 WASHER 6 (21.5) 1

51 JM27000056 FIX PLATE 2

52 JM27000057 LEFT GUARD 1

53 JM27000058 CONNECTION BOLT 1

54 JM27000059 PIN 4X12 1

55 JM27000060 WASHER 1

56 JM27000061 QUICK FIXING LEVER 1

57 JM27000062 SIDE PROTECTION PLATE 1

58 JM27000063 PIN 10X21.5 1

59 JM27000064 FLAT WASHER 10 1

60 JM27000065 RING 10 1

61 JM27000066 FLAT HEAD SCREW M4X8 6

62 JM27000067 TABLE INSERT (PLASTIC) 1

63 JM27000068 RIGHT EXTENSION TABLE 1

64 JM27000069 HEX SOCKET HEAD BOLT M14X20 2

65 JM27000070 HEX NUT M8 3

66 JM27000071 SPRING WASHER 8 3

67 JM27000072 FLAT WASHER 8 3

68 JM27000073 SQUARE NECK BOLT M8X25 3

69 JM27000074 FRONT RAIL END CAP RIGHT 1

70 JM27000075 FRONT RAIL FOR RIGHT EX-TABLE 1

71 JM27000078 FRONT RAIL END CAP LEFT 1

72 JM27000425 SLIDE PIPE 630 2

73 JM27000082 FRONT RAIL 1

77 JM00000147 TOOL CASE ASSY 1

78 JM27000089 SAW DUST OUTLET 1

79 JM27000090 CUFFS 57-45 1

80 JM27000091 HEX BOLT M6X65 1

81 JM27000092 HEX BOLT M6X55 1

82 JM27000093 CORD HANGER 2

83 JM27000094 CORD GUARD 1

084A_ JM27000095 HOOK 2

85 JM27000156 PAN HEAD SCREW M5X20 6

87 JM27000102 CORD CLAMP 1

88 JM27000103 TAPPING SCREW ST3.9X16 2

89 JM27000104 HEX BOLT M10X45 1

91 JM27000108 UNDER PANEL 1

92 JM27000009 FLAT WASHER 4 1

93 JM27000110 FRONT PANEL LABEL 1

94 JM27000111 HEX BOLT M6X16 2

95 JM27000112 BLADE CASE FIX BRACKET SPACER 1

96 JM27000113 MAKITA LOGO PLATE 1

97 JM27000114 TAPPING SCREW ST2.9X10 2

101 JM27000118 CORD CLAMP 1

102 JM27000119 SWITCH BOX COVER 1

103 JM27000120 SWITCH BOX 1

104A_ JM27000121 CIRCUIT BREAKER 220-240V 1

105 JM27000122 LABEL FOR CIRCUIT BREAKER 1

106 JM27000123 NUT FOR CIRCUIT BREAKER 1

107A_ JM27000443 ANTI RESTART SWITCH 220-240V 1

108 JM27000136 PAN HEAD SCREW M4X14 2

109 JM27000137 HEX SOCKET HEAD BOLT M6X12 1

110 JM27000138 LOCK HANDLE FOR BLADE ANGLE 1

111 JM27000139 BLADE ANGLE LOCKING BOLT 1

112 JM27000140 COMPRESSION SPRING 1

113 JM27000141 FLAT WASHER 10 1

114 JM27000142 BLADE ANGLE ADJUSTING RACK 1

115 JM27000143 SUPPORT PLATE FOR ADJUST RACK 1

116 JM27000144 FLAT HEAD SCREW M5X8 4

117 JM27000145 RIP FENCE HOLDER 1

120 JM27000148 BRACKET FOR RIVING KNIFE 1

121 JM27000149 HEX SOCKET HEAD BOLT M6X20 2

122 JM27000150 RIVING KNIFE 1

123 JM27000151 FIX PLATE FOR RIVING KNIFE 1

124 JM27000152 RETAINER PLATE FOR BLADE CASE 1

125 JM27000153 BLADE CASE LEFT SIDE 1

126 JM27000154 COVER PLATE FOR BLADE CASE 1

127 JM27000155 FLAT WASHER 5 2

128 JM27000156 PAN HEAD SCREW M5X20 4

129 JM27000157 SLIDE SHAFT FOR BLADE LIFTING 2

130 JM27000158 SLIDE SCREW FOR BLADE LIFTING 1

131 JM27000159 KEY 4X8 1

132 JM27000160 BRACKET FOR SLIDE SCREW 1

133 JM27000161 HEX SOCKET HEAD BOLT M5X20 2

134 JM27000162 BEVEL GEAR FOR BLADE LIFTING 1

135 JM27000163 RETAINING RING S-10 1

136 JM27000164 BLADE ANGLE POINTER 1

137 JM27000165 HANDLE AXLE FOR BLADE LIFTING 1

138 JM27000166 ADJUSTING GRIP FOR BLADE ANGLE 1

139 JM27000167 PAN HEAD SCREW M5X12 1

140 JM27000168 CRANK ASSY FOR BLADE LIFTING 1

141 JM27000169 PAN HEAD STEPPED SCREW M5X37 1

142 JM27000170 PROTECTION PLATE 1

143 JM27000171 INNER FLANGE 52 1

144 JM27000172 H.S.SET SCREW M6X12 WITH GLUE 1

145 JM27000173 SPRING FOR BLADE CASE BRACKET 2

146 JM27000174 PAN HEAD SCREW M3X25 2

147 JM27000175 WASHER 3 (L) 2

148 JM27000176 HEX LOCK NUT M3 2

149 JM27000177 TAPPING SCREW ST3.9X10 1

150 JM27000178 PROTECTION PLATE 397X123 1

151 JM27000179 OUTER FLANGE 52 1

152 JM27000180 HEX NUT M16 1

153 JM27000181 BLADE CASE RIGHT SIDE 1

154 JM27000182 BLADE CASE PLATE 1

155 JM27000183 HEX LOCK NUT M5 1

156 JM27000184 SUPPORT BRACKET 1

158 JM27000186 GRIP SCREW M8X10 1

159 JM27000187 SPRING PIN 4X30 1

160 JM27000188 KNURLED PIN 8X30 1

161 JM27000189 ECCENTRIC RING 1

162 JM27000190 FRICTION PAD 1

163 JM27000191 KNURLED PIN 5X30 1

164 JM27000192 RIP FENCE BRACKET 1

165 JM27000193 COMPRESSION SPRING 1

166 JM27000194 RIP FENCE FIXED PLATE 1

168 JM27000196 HEX BOLT M6X35 1

169 JM27000197 POINTER 1

170 JM27000198 PAN HEAD SCREW M4X8 1

171 JM27000199 FENCE BRACKET 1

172 JM27000200 FENCE END CAP 1

173 JM27000201 FENCE BAR 1

174 JM27000203 THUMB NUT M6 2

175 JM27000204 SQUARE NECK BOLT M6X60 2

176 JM27000205 FENCE END CAP 1

177 JM27000206 SLIDING BAR 1

178 JM27000207 POINTER 1

179 JM27000208 FLAT WASHER 3 1

180 JM27000209 PAN HEAD SCREW M3X8 1

181 JM27000210 THUMB SCREW M6X13 1

182 JM27000211 WASHER 6 (L) 2

183 JM27000212 WASHER 8 1

184 JM27000213 THUMB SCREW M6X62 1

185 JM27000214 SCALE LABEL 1

186 JM27000215 GRIP SCREW M8X20 1

187 JM27000216 VISE ROD 1

188 JM27000217 THUMB SCREW M10X92 1

189 JM27000218 VISE ARM 1

190 JM27000219 VISE PLATE 1

191 JM27000220 FENCE END CAP 2

192 JM27000221 FENCE PLATE 1

193 JM27000222 SQUARE NECK BOLT M6X30 2

194 JM27000223 ANGLE RULE BASE 1

195 JM27000225 SLIDING BAR SPACER 1

246 JM23000152 POWER SUPPLY CORD 1

247 JM27000292 PAN HEAD SCREW M5X8 2

248 JM27000293 AIR INLET COVER PLATE 1

249 JM27000294 BRUSH CAP 2

250 JM23000123 CARBON BRUSH 2PCS/SET 1

253 JM27000299 CORD CLAMP 1

254 JM27000361 RUBBER RING 1

255 JM27000445 BALL BEARING 6001RS 1

256A_ JM27000302 STATOR ASSY 230V 1

257 JM27000305 TAPPING SCREW ST4.8X70 2

259 JM27000446 BALL BEARING 6201RS 1

260 JM27000313 BAFFLE RING 1

262 JM27000316 PAN HEAD SCREW M5X35 4

263 JM27000317 FLAT HEAD SCREW M5X16 3

264 JM27000318 BEARING BOX 1

265 JM27000319 BALL BEARING 6003RS 1

266 JM27000320 RETAINING RING R-35 1

267 JM27000321 SPINDLE SHAFT 5/8" 1

268 JM27000323 KEY 5X6.5X16 1

269 JM27000324 HELICAL GEAR 43 1

270 JM27000325 RETAINING RING S-16 1

272 JM27000327 SLIDING TABLE BASE FIX PLATE 2

277 JM27000332 R-TYPE CABLE CLAMP 2

278 JM27080019 NAME PLATE 1

280A_ JM27000333 SCALE LABEL (METRIC) 1

281A_ JM27000335 SCALE LABEL EX-TABLE (METRIC) 1

283A_ JM27000428 SCALE LABEL SL-PIPE (METRIC) 1

284 JM27000339 H.S.SET SCREW M6X20 WITH GLUE 2

285 JM27000340 BLADE GUARD 1

286 JM27000114 TAPPING SCREW ST2.9X10 4

287 JM27080020 WARNING LABEL 1

288 JM27080060 WARNING LABEL 1

309A_ JM27000052 UP BLADE GUARD ASSEMBLY (EU TY 1

309A_ D10 INC. 49-60,122,285,286,288,597

313B_ JM27000101 BLADE INNER LING 25.4 1

314A_ JM27000106 CABINET 1

319 JM27000298 MOTOR HOUSE ASSEMBLY 1

320A_ JM27000309 ARMATURE ASSY 230V 1

320A_ D10 INC. 254,255,259

321 JM27000424 GEAR BOX ASSEMBLY 1

322 JM27000322 OUTER SHAFT ASSEMBLY 1

322 D10 INC. 264-270

411 JM27000024 FLAT WASHER 6 12

412 JM27000024 FLAT WASHER 6 12

414 JM27000024 FLAT WASHER 6 2

415 JM27000024 FLAT WASHER 6 2

416 JM27000024 FLAT WASHER 6 2

417 JM27000024 FLAT WASHER 6 2

418 JM27000024 FLAT WASHER 6 2

424 JM27000004 TAPPING SCREW ST3.9X12 2

426 JM27000177 TAPPING SCREW ST3.9X10 4

427 JM27000004 TAPPING SCREW ST3.9X12 2

428 JM27000004 TAPPING SCREW ST3.9X12 6

429 JM27000004 TAPPING SCREW ST3.9X12 2

430 JM27000004 TAPPING SCREW ST3.9X12 2

431 JM27000004 TAPPING SCREW ST3.9X12 2

432 JM27000009 FLAT WASHER 4 4

433 JM27000009 FLAT WASHER 4 1

434 JM27000009 FLAT WASHER 4 1

435 JM27000009 FLAT WASHER 4 1

437 JM27000009 FLAT WASHER 4 2

438 JM27000009 FLAT WASHER 4 2

439 JM27000009 FLAT WASHER 4 2

440 JM27000009 FLAT WASHER 4 1

441 JM27000155 FLAT WASHER 5 4

442 JM27000155 FLAT WASHER 5 2

444 JM27000155 FLAT WASHER 5 1

446 JM27000155 FLAT WASHER 5 4

447 JM27000155 FLAT WASHER 5 2

448 JM27000155 FLAT WASHER 5 2

449 JM27000016 PAN HEAD SCREW M6X10 3

450 JM27000033 HEX BOLT M6X10 3

451 JM27000013 SPRING WASHER 4 4

452 JM27000013 SPRING WASHER 4 1

453 JM27000013 SPRING WASHER 4 2

454 JM27000013 SPRING WASHER 4 2

455 JM27000013 SPRING WASHER 4 1

457 JM27000024 FLAT WASHER 6 3

458 JM27000017 SPRING WASHER 6 2

459 JM27000017 SPRING WASHER 6 2

460 JM27000017 SPRING WASHER 6 2

461 JM27000017 SPRING WASHER 6 2

462 JM27000032 HEX NUT M6 1

463 JM27000048 SPRING WASHER 5 4

464 JM27000048 SPRING WASHER 5 2

466 JM27000048 SPRING WASHER 5 4

468 JM27000167 PAN HEAD SCREW M5X12 2

469 JM27000042 PAN HEAD SCREW M5X10 2

470 JM27000042 PAN HEAD SCREW M5X10 2

471 JM27000042 PAN HEAD SCREW M5X10 1

472 JM27000042 PAN HEAD SCREW M5X10 1

473 JM27000109 WASHER 4 (L) 2

474 JM27000109 WASHER 4 (L) 6

475 JM27000109 WASHER 4 (L) 2

476 JM27000109 WASHER 4 (L) 1

477 JM27000011 PAN HEAD SCREW M4X12 4

478 JM27000011 PAN HEAD SCREW M4X12 1

479 JM27000011 PAN HEAD SCREW M4X12 1

480 JM27000011 PAN HEAD SCREW M4X12 2

481 JM27000047 WASHER 5 (L) 6

482 JM27000047 WASHER 5 (L) 2

483 JM27000066 FLAT HEAD SCREW M4X8 2

484 JM27000066 FLAT HEAD SCREW M4X8 1

485 JM27000027 PAN HEAD SCREW M4X10 1

486 JM27000027 PAN HEAD SCREW M4X10 2

487 JM27000027 PAN HEAD SCREW M4X10 2

488 JM27000027 PAN HEAD SCREW M4X10 1

489 JM27000037 TAPPING SCREW ST3.9X8 3

490 JM27000149 HEX SOCKET HEAD BOLT M6X20 2

491 JM27000149 HEX SOCKET HEAD BOLT M6X20 2

492 JM27000070 HEX NUT M8 2

493 JM27000071 SPRING WASHER 8 2

494 JM27000072 FLAT WASHER 8 2

495 JM27000073 SQUARE NECK BOLT M8X25 2

496 JM27000038 PAN HEAD SCREW M6X16 2

497 JM27000043 KNOB BOLT M6X20 2

498 JM27000114 TAPPING SCREW ST2.9X10 2

500 JM27000203 THUMB NUT M6 2

501 JM27000211 WASHER 6 (L) 2

502 JM27000051 HEX LOCK NUT M6 1

504 JM27000032 HEX NUT M6 2

505 JM27000006 GRIP (INSIDE) 1

506 JM27000005 GRIP (OUTSIDE) 1

507 JM27000007 HEX LOCK NUT M4 1

508 JM27000010 SLIDE TABLE STOPPER 1

509 JM27000018 RACK FOR SLIDE TABLE 1

510 JM27000039 FIX BRACKET FOR BLADE CASE 1

511 JM27000064 FLAT WASHER 10 1

514 JM27000074 FRONT RAIL END CAP RIGHT 1

515 JM27000078 FRONT RAIL END CAP LEFT 1

516 JM27000152 RETAINER PLATE FOR BLADE CASE 1

517 JM27000159 KEY 4X8 1

518 JM27000162 BEVEL GEAR FOR BLADE LIFTING 1

519 JM27000163 RETAINING RING S-10 1

520 JM27000042 PAN HEAD SCREW M5X10 1

521 JM27000185 COVER 1

523 JM27000210 THUMB SCREW M6X13 1

524 JM27000036 SLIDING TABLE COVER 1

565 JM00000148 RIP FENCE BRACKET ASSY 1

565 D10 INC. 159-161,163-166,567,568

567 JM27000024 FLAT WASHER 6 1

568 JM27000024 FLAT WASHER 6 1

569 JM00000149 SLIDE RAIL ASSY 1

570 JM00000154 WAVE WASHER 4 1

571 JM00000154 WAVE WASHER 4 1

572 JM00000135 HEX NUT M10 1

573 JM27000003 FLAT WASHER 10 1

574 JM27000009 FLAT WASHER 4 2

575 JM27000013 SPRING WASHER 4 2

577 JM27000009 FLAT WASHER 4 2

578 JM00000156 VINYL TUBE 1

580 JM27000017 SPRING WASHER 6 2

581 JM27000017 SPRING WASHER 6 2

582 JM27000024 FLAT WASHER 6 1

583 JM27000032 HEX NUT M6 3

584 JM27000155 FLAT WASHER 5 2

585 JM27000048 SPRING WASHER 5 2

586 JM27000155 FLAT WASHER 5 2

587 JM27000048 SPRING WASHER 5 2

588 JM00000155 CORD CLAMP 1

589 JM27000183 HEX LOCK NUT M5 3

590 JM27000317 FLAT HEAD SCREW M5X16 3

592 JM27000453 O-RING 2.5X1.5 6

593 JM00000152 CRANK FOR BLADE LIFTING 1

594 JM00000151 HEX NUT M5 1

595 JM00000153 GRIP FOR BLADE LIFTING 1

596 JM27000155 FLAT WASHER 5 1

597 JM27080108 CAUTION LABEL 1

598 JM00000157 GROMMET 1

601 JM27000014 SQUARE SLIDER RAIL OUTSIDE 1

602 JM27000022 V-SLIDER RAIL OUTSIDE 1

A02 JM27000087 WRENCH 24 2

A03 JM27000328 TRIANGLE PLATE 1

A04 JM27000329 HEX WRENCH 6 1

A05 JM27000098 BLADE 255X25.4 1
